Using ArcFM Solution Desktop
Designer Utility Tools
| ArcFM Desktop Overview > Designer > Designer Utility Tools |

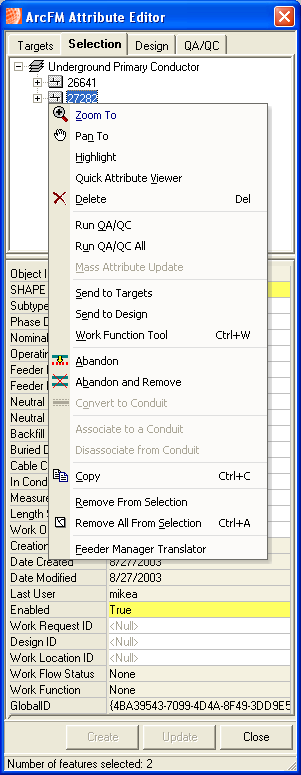

Access Designer utility tools by right-clicking a feature in the Attribute Editor. Select Zoom To, Highlight, Quick Attribute Viewer, Delete, Remove from Selection, Send to Targets, Send to Design, Copy, Remove from List, Update Work Flow Status, or Feeder Manager Translator. When you right-click related objects, Unrelate Object will be added to the options.
The utility tool in blue (Zoom To in the example above) indicates the default action. The default is the first option and occurs when you double-click a feature.
When using the Locator tool you can also select the Add to Selection utility by right-clicking a feature in the Locator results listing.
- Add Non-GIS CU
- Add Related (CUs tab)
- Add Related Object (Features tab)
- Add to Selection
- Change CU
- Copy
- Create Related Object
- Delete
- Feeder Manager Translator
- Highlight
- Locate and Relate Objects
- Pan To
- Quick Attribute Viewer
- Remove From Design
- Remove From List
- Remove From Selection/Remove All From Selection
- Send to Design
- Send to Targets
- Unrelate Associated Object
- View Conduit Configuration
- Zoom To
