When using the ArcFM Locator tool (accessed with the ArcFM Locator tool button on the ArcFM toolbar), you can add the search results to the Attribute Editor Selection tab. Add to Selection is available when you right-click a single feature or multiple features.

1. There are two ways to add located features to your Selection tab.
   • Before clicking the Find button, you can select the Auto Add to Selection checkbox. All items located in the search will be added to the Selection tab.

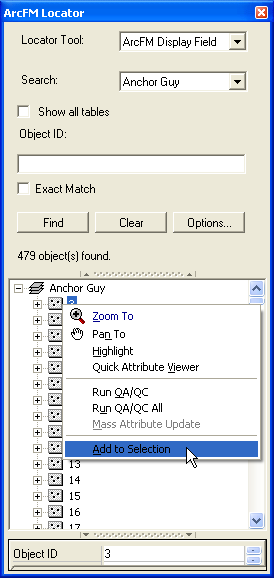

   • After the search is performed, you may right-click the feature(s) or layer listed in the results window and select Add to Selection.

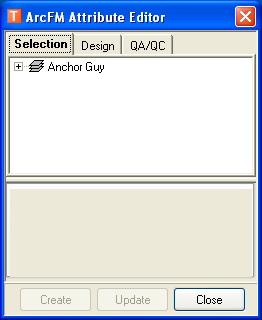

2. The feature will be listed on the Selection tab of the Attribute Editor.





---
