The Add Related utility allows you to add non-symbolized CUs to symbolized CUs on the Targets tab before placing them on the map.

1. Send a CU to the Targets tab from the CUs tab.

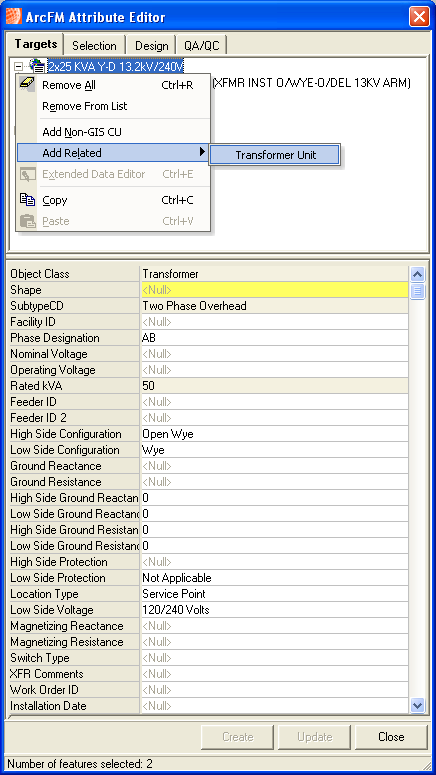

2. Right-click the parent level of the CU on the Targets tab and select Add Related.
3. Choose a non-symbolized feature from the Add Related menu. Only items that have a relationship with the selected CU and the model name DESIGNUNIT assigned will appear in the menu. See the Configuring ArcFM Solution online help in ArcCatalog for information about model names.
4. Select a CU from the Select CU(s) window.
5. Click OK.





---
