Configuring Responder/Smart Grid
Test the Configuration

Version: 10.1

Resource Center Home

This process will work only if the OASyS server is using the same version as the Responder server (7.5.12).

Follow these steps if you'd like to ensure the installation/configuration was successful. These steps use the DALMultiSubscriber.exe and DALMultiPublisher.exe applications provided with the OASyS installs.

This test can be done when you've finished with the installation/configuration on the RCS server (both executables run on the same machine). This test can be done again after you've finished configuring a client machine (DALMultiSubscriber on the client; DALMultiPublisher on the server).

When testing the client machine, you will need to copy DALMultiSubscriber.exe, DALMultiSubscriber.pdb, and DALMultiSubscriber.xml from the RCS server to the client machine. Copy from C:\Program Files (x86)\Telvent\bin on the RCS server and paste to the same location on the RCS client machine (e.g., Responder server or Responder client).

  1. Browse to C:\Program Files (x86)\Telvent\bin and double-click DALMultiSubscriber.exe to launch. This can be done on the RCS server or an RCS client (Responder server or Responder client). It's recommended to test on both the RCS server and RCS clients.
  2. Select es\remote and click OK.
  3. Enter dnaUser as the User Name and the corresponding password. You may be prompted to do this twice.
  4. Enter es.help in the pull-down field at the bottom left and click Add Subscription. You can enter any value here. However, the value entered in the Topic field in DALMultiPublisher.exe (step 8) MUST match the value entered here.
  5. On the RCS server, browse to C:\Program Files (x86)\Telvent\bin and double-click DALMultiPublisher.exe to launch.
  6. Select es\remote and click OK.
  7. Enter dnaUser as the User Name and the corresponding password. You may be prompted to do this twice.
  8. Enter es.help in the Topic field. This value must match the value entered in step 4.
  9. Enter a value (any value) in the Value1 field.
  10. Click Publish.

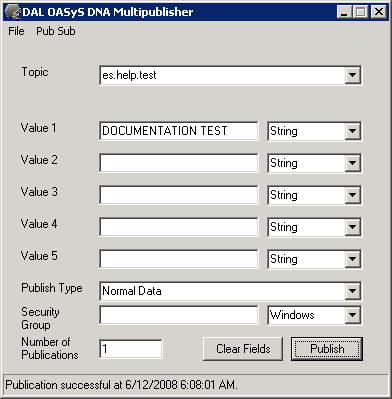

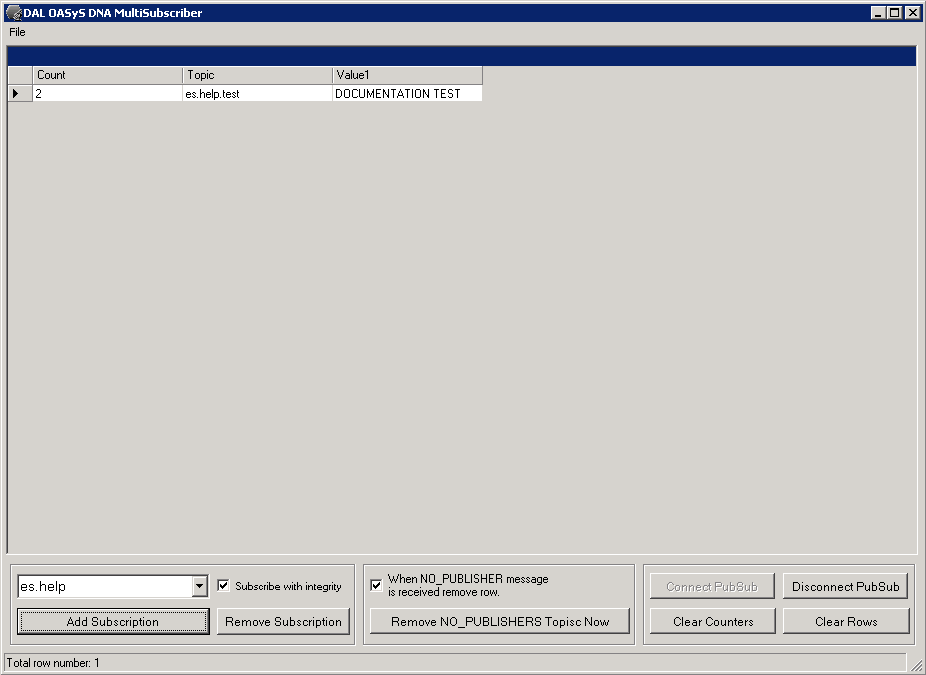

    The value published (DOCUMENTATION TEST in the example) is published to the DALMultiSubscriber. This can be on the RCS server or an RCS client (Responder server or Responder client).
