The following errors may be encountered while attempting to send feeder information to DMS using Network Adapter. These errors are received from DMS and involved settings that must be fixed in DMS or DMD Client. Refer to the DMS documentation for details.

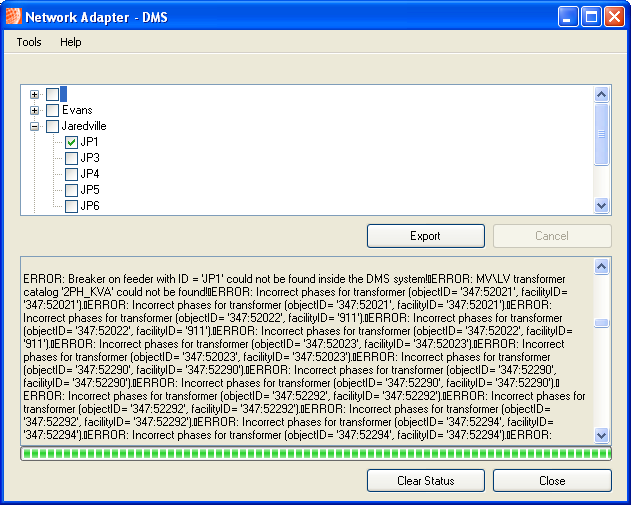

Feeder Not Found

Problem: An exported feeder does not exist in the DMS system.

Solution: Add the feeder using the Create HV/MV Substations tool in DMD Client.

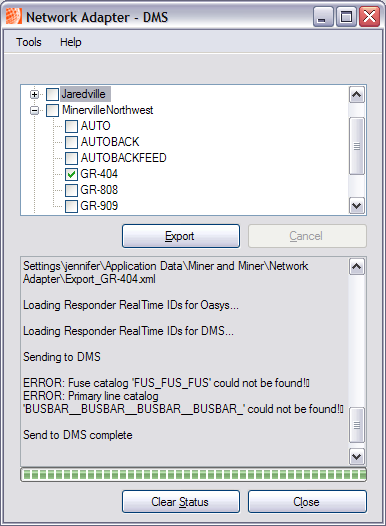

Missing DMS Catalog Item

Problem: This error indicates that an item is missing from the DMS Catalog.

Solution: Use the DMS Builder application open the appropriate catalog and add the device named in the error message.
