Clustering Server 2008 R2

Server clustering is not a required part of the Responder implementation. If you choose to implement it, server clustering will provide failover support for the Responder services and message queues. If one Responder server should fail, its workload is shifted to another server in the cluster without impacting Responder users.

The Responder server is installed as a virtual server. This allows the Responder services to failover to a different server should the physical server fail.

In order for this to work properly, it is critical that all servers in the cluster be configured identically, with Failover Cluster Manager installed on each one. In addition, your cluster must have available unused storage in order to cluster.

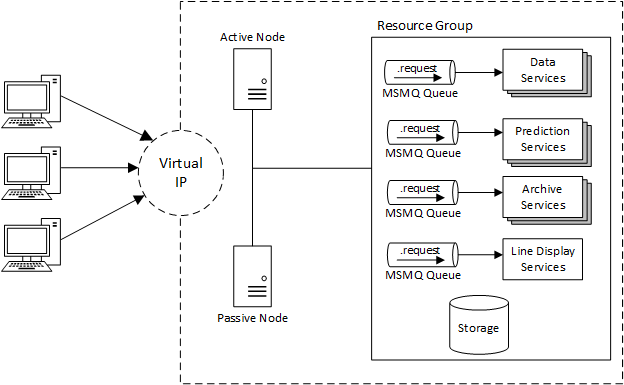

In order to permit scaling-out, Responder uses a component called a Message Router to route messages from the client facing queues to the back-end Responder services (e.g., Data Services, Prediction Services). The image below shows the Message Router component in a group (to allow for failover) forwarding messages to additional server machines that participate as active nodes in an active/active server cluster. If an active node (in the responder business services cluster) fails-over then its resources will transfer to another node. (Only two nodes are shown in the active/active cluster, but Windows Server 2008 R2 supports up to sixteen nodes. This may vary for different OS versions.)

Query Services should NOT participate in the cluster. Running Query Services as a generic Windows service resource under the cluster service is neither supported or tested.

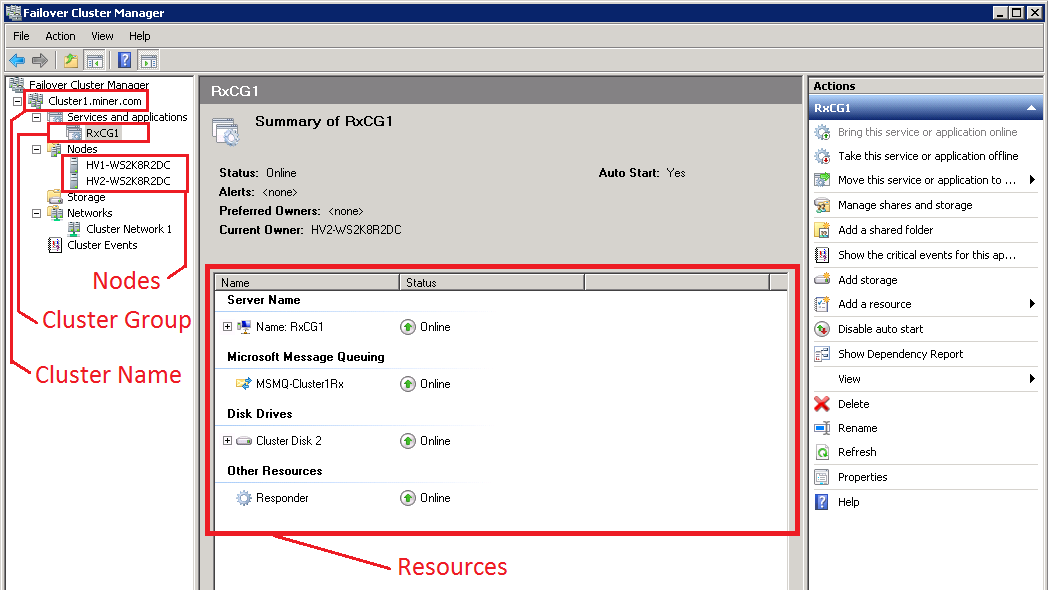

Terms

These are the terms used in this documentation.

Cluster: A cluster is a group of two or more servers working together to provide applications or services to clients. A cluster provides failover support should a server in the cluster fail. Responder can use a cluster to provide failover support for the Responder services (i.e., Data Services, Archive Services, Prediction Services). A cluster may also be referred to as a server cluster.

Cluster Group: Each virtual server in the cluster is represented by a cluster group. When failover occurs, the entire group will failover.

Resource: Each cluster group consists of resources that indicate information such as physical address, IP address, message queuing and network name.

Node: A node represents a physical server in the server cluster. The names of your nodes can correspond with the names of the servers they represent.

Before You Begin

The process for implementing server clustering can vary significantly depending on your system and requirements. Please ensure that your IT support representative has adequate knowledge of clustering and that your nodes are clustered correctly prior to configuring the servers for Responder.

If you choose to use Server Clustering the following requirements are specific to Responder.

Responder supports only Server Clustering (NOT Network Load Balancing or Component Load Balancing).
Software must be installed in the following order:

Failover Cluster Manager

MSMQ

ArcFM or ArcFM Viewer

Responder
All servers (active and passive) in the server cluster must have identical Responder server configurations.

Configuration

Configure your Responder server and Message Router using the following instructions.
