In this step, you'll create two domains and add the necessary Responder model names to these domains.

If the Responder Object Class Model Name and Responder Field Model Name domains do not exist, you will need to add them using ArcCatalog. ArcMap must be closed before adding a domain to ArcCatalog. You may name these domains anything you'd like.

If these domains already exist in your geodatabase, skip to the next set of steps at the bottom of this page.

1. In ArcCatalog, right-click the geodatabase and select Properties.
2. Select the Domains tab and scroll to the bottom.
3. Select the empty row and type into the Domain Name column the name of your Responder class model name domain (e.g., Responder Object Class Model Name).
4. Enter a description, if desired.
5. Ensure the Field Type is Text in the Domain Properties. The Domain Type must be Coded Values.
6. Click Apply.
7. Repeat steps 3-6 to create a domain for your Responder field model names (e.g., Responder Field Model Name).
8. These new domains must be added to the Object Class Model Name Domain and the Field Model Name Domain.

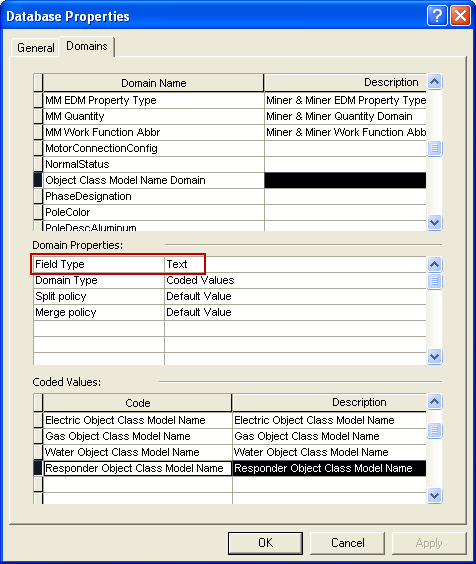

9. In the Properties window (Domains tab), select the Object Class Model Name Domain and scroll to the bottom of the Coded Values field.
10. Add the name of the Responder object class model name domain you just created (e.g., Responder Object Class Model Name). Enter a description and ensure the Field Type is Text.

11. Next, select the Field Model Name Domain.
12. Add the name of the Responder field model name domain you just created (e.g., Responder Field Model Name). Enter a description and ensure the Field Type is Text.
13. Click Apply to save changes and OK to dismiss the dialog.

Next, add class model names and field model names to the Responder domains you just created.

1. In ArcCatalog, right-click the geodatabase and select Properties.
2. Select the Domains tab.
3. Select to the Responder Object Class Model Name Domain.
4. With the Responder Object Class Model Name domain selected, enter the following model names in the Coded Values table.

   FDRMGRLOADPOINT

   RXFACILITY

   RXHAZARD

   RXINCIDENTDEVICE

   RXINCIDENTFEATURE

   RXLINEDISPLAY

   RXREGION

   RXSWITCHABLEDEVICE

   RXUSERDEFINED

5. Select the Responder Field Model Name domain and enter the following field model names in the Coded Values table.

   FDRMGRGANGOPERATED

   RXCONDUCTORFCID

   RXFEEDERID

   RXPHASE

   RXREGIONNAME

   RXREGIONPARENT1

   RXREGIONPARENT2

   RXRESPONSIBLEDEVICEFCID

   RXRESPONSIBLEDEVICEOID

   RXRESPONSIBLEDEVICESUBID

   RXRESPONSIBLEDEVICEX

   RXRESPONSIBLEDEVICEY

   Optional: RXREGION, RXREGIONNAME, RXREGIONPARENT1, RXREGIONPARENT2 are optional. These model names are used only if you wish to configure the Regions functionality.

   Optional: RXLINEDISPLAY, RXCONDUCTORFCID, RXFEEDERID, RXRESPONSIBLEDEVICEFCID, RXRESPONSIBLEDEVICEOID, RXRESPONSIBLEDEVICESUBID, RXRESPONSIBLEDEVICEX, and RXRESPONSIBLEDEVICEY are also optional. These model names are used to display de-energized feeders on the map.

6. Click OK.
