Using ArcFM Solution Desktop
Searches

Resource Center Home

The My Searches section of the Explore pane allows you to create and access saved searches. If you use a particular search frequently, you may wish to save it for easy retrieval later.

Create

To create a new search, follow the steps outlined below.

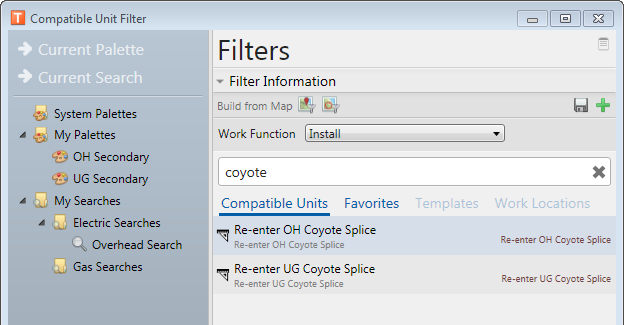

  1. In the Filters section, define a search. In the example below, the Electric Features tag filter limits the list in the Results pane to all CUs with the Overhead tag assigned. The value in the Search field (Coyote) identifies a single CU in this list.

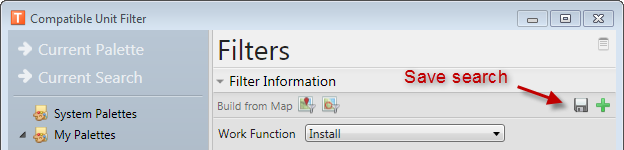

  1. Once you have a search defined using the filters and the Search field, click the Save button next to the Build from Map tools.

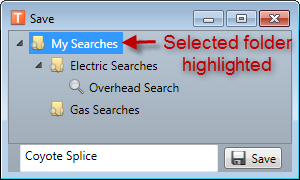

  1. In the Save window, select a folder (e.g., My Searches or a custom folder). This is the folder in which your search will be saved.
  2. Enter a name for the search and click Save. The search is saved in the selected folder.





Once created, you can right-click a search and access the following tools:



View

To retrieve a saved search, simply double-click it in the Explore pane. The filter criteria will populate the Filter area and the results will be visible in the Results pane. Values entered into the Search field are not saved.
