Navigating the Attribute Editor
| ArcFM Desktop Overview > ArcFM > Attribute Editor > Navigating the Attribute Editor |
The Attribute Editor provides a wide variety of functionality. A user can perform functions such as view and edit selected features, edit features before placement, and view QA/QC results. The following tips show you how to navigate the Attribute Editor and interpret the data it presents.

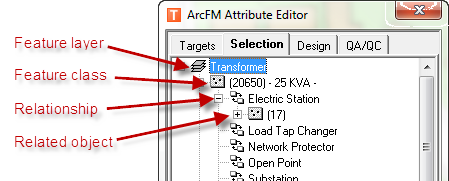

Use the Enter key and arrow keys to move up and down the list of attributes and coded domain values. Use the plus (+) and minus (-) signs to expand and collapse nodes in the Attribute Editor. Each type of node has a specific icon associated (see Figure 1).
Figure 1, Icons on the Attribute Editor
If you wish to expand or collapse multiple nodes at once, select the top-most node (of those you wish to expand/collapse) and press the asterisk (*) symbol (expand) or the minus (-) symbol (collapse) on your keyboard number pad. The asterisk (shift + 8) and the minus on the main keyboard will not work. You must use the * and - above the number pad on your keyboard. This functionality also works on the Features tab.
The ArcFM Display Field is the value of a specific field displayed on the Attribute Editor, as shown below. If the ArcFM Display Field (e.g., FacilityID), contains no value, then the ObjectID is shown in parentheses. Administrators can change the Display Field at the Field Display tab of the ArcFM Properties Manager in ArcCatalog.
Figure 2, No value in the display name field; OID displayed by default
ArcFM allows the use of custom display name objects in the ArcFM Display Field. If your administrator has created and configured a custom display name object, feature display names may look different. In the example below, the display name object shows Facility ID, Valve Diameter, and Material.
Figure 3, Custom display name object concatenates multiple fields

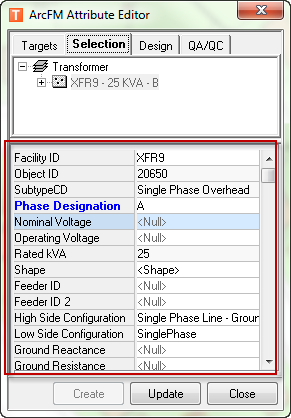

The Object Editor is the grid at the bottom of the Attribute Editor that displays attribute information for the selected feature. A blue field label indicates that the field value has been modified, but not saved. If a field does not accept a Null value and no value is assigned, it is highlighted in yellow. When you click Apply, the modification is saved and the field label returns to black.
A field value in red text indicates that the value does not exist in the domain assigned to that field.
Figure 4, Object Editor
A variety of utility tools are available when you right-click nodes on the Attribute Editor, depending upon the type of node selected.
If the Attribute Editor form is hiding a highlighted feature, the form will become transparent to make the highlighted feature visible when it flashes.
