Map Grid Generator
| ArcFM Desktop Overview > ArcFM > Map Grid Generator |

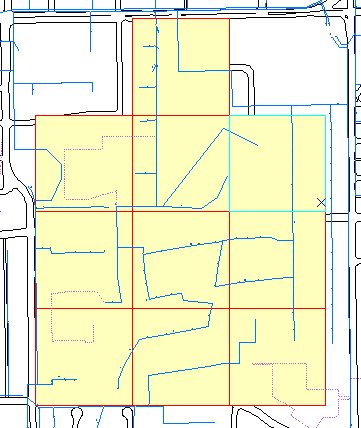

A map grid is a set of map sheets. The ArcFM Map Grid Generator allows you to create a customized map grid for a set of selected features. In the example below, the map grid is the entire area shaded yellow. The map sheets are polygons outlined in red. Each map sheet is an individual feature that you can select and edit. The map sheet outlined in blue in the image below is selected and will appear on the Selection tab of the Attribute Editor.
To access the Map Grid Generator, click
on the ArcFM toolbar. For additional information refer to the following:
 |
Map Grids may only be created during an Edit session. If the user ends the session without saving edits, the map grids created during that session will be lost. This also applies if the user creates map grids, then adds them to a map book and saves the map book. The user must save edits to ensure these map grids still exist in the map as well as in the map book. |
