Using ArcFM Solution Desktop
Composite Favorite Rotation
| ArcFM Desktop Overview > ArcFM > Features List > Composite Favorites > Composite Favorite Rotation |
A composite feature can be rotated around its insertion point if you place it using the ArcFM Manual Angle Setter edit task. A composite favorite must include at least one point feature, and every point feature composing it must have a Symbol Rotation field.

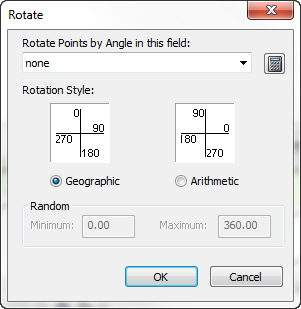

Rotation algorithms are set using the ArcGIS layer Properties dialog (right-click the feature in one of the table of contents' lists) at the Advanced button on the Symbology tab. Symbol Rotation must be selected in the "Rotate Points by Angle in this field" menu.
The composite favorite must have ArcFM Manual Angle Setter selected in the Edit Task field. If this edit task is not selected, the composite favorite will not be rotated when it is placed.
To place a composite favorite with the Manual Angle Setter task assigned, the user need only click it on the Features list (with an edit session started) and click the map. The first click designates the placement and the second click determines the rotation.
