Classic Patch Panel Connection Report

Resource Center Home

A patch panel connection report is a graphical display of the layout of a patch panel or a series of patch panels. This topic describes the patch panel connection report generated by Fiber Manager when a classic data model is being used.

After clicking the Patch Panel Connection Report button and using the flag cursor to select the patch location (steps covered in the Patch Panel Report topic), follow the steps below.

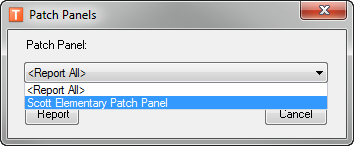

  1. The Patch Panels window appears.
  2. Use the drop down menu to select a single patch panel or select <Report All> to report on all patch panels (if more than one patch panel exists at the location).

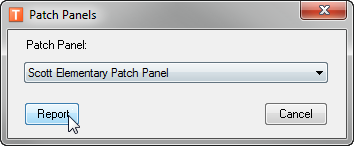

  3. Click the Report Button to run the report.

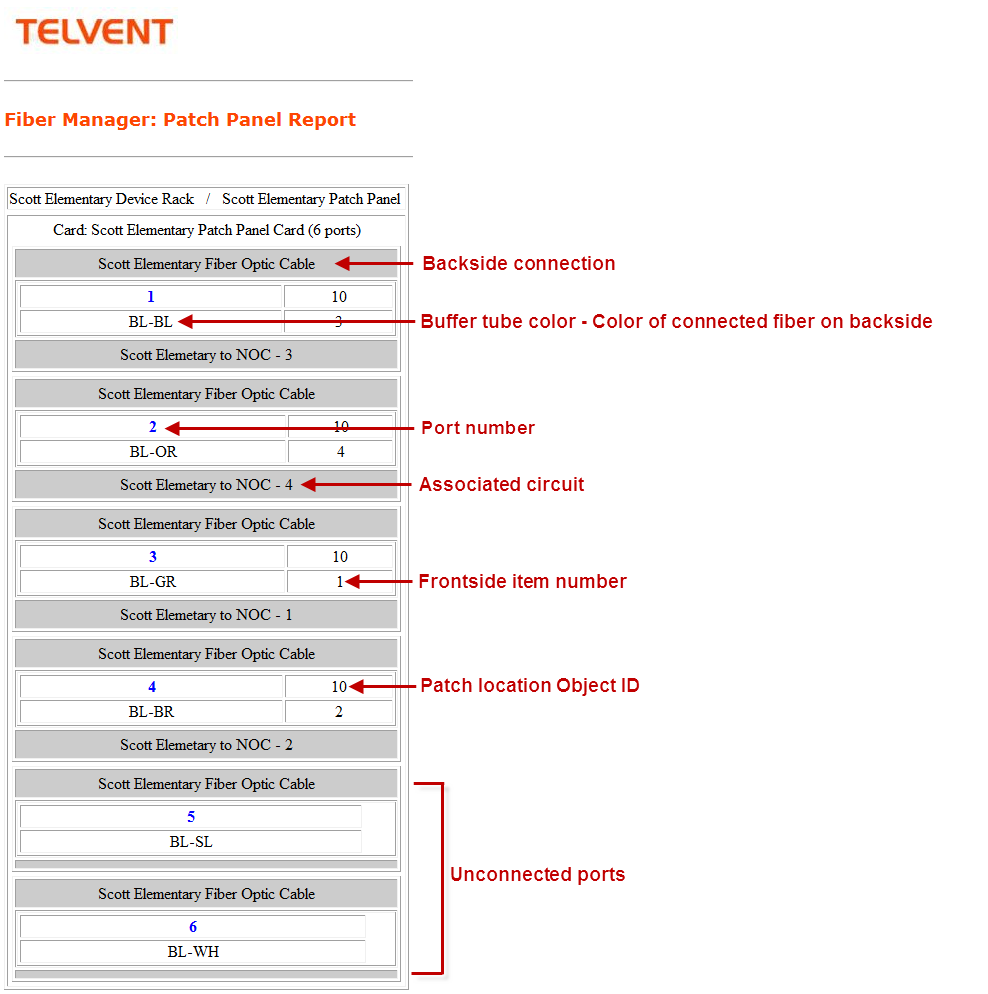

  4. A XML report similar to the following example displays your web browser:
    If the report looks different than the screenshot below, review the Flexible Patch Panel Report topic.
