You may localize the Process Framework task names as they appear in the user interface. Unlike the other localization tasks discussed in this section, Process Framework tasks require no code modifications. You may localize the task names by simply setting configuration keys and editing the task names in the Process Framework Administration tool. It is a wise idea to localize the task names on your Enterprise Process Framework database before distributing it to any Mobile users. This prevents you from having to localize on field machines as well as your Enterprise database.

There are two steps to editing task names in the Process Framework Administration tool. Both steps are required and the names MUST match in both locations. Follow the steps outlined below to modify the name of a task.

Step 1: Change the Task Name

1. Open the Process Framework Administration tool and login to the database in which the tasks reside (e.g., Process Framework database on the Enterprise).
2. Select the Node Types tab.
3. Choose the node on which the task is enabled and then select the task in the list below.
4. Click Properties.
5. Edit the task name in the Task Name field. This changes the name in the user interface.

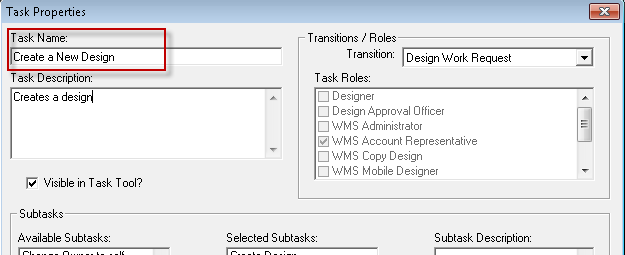

Figure 1, change the Task Name in Process Framework Administration tool

Figure 2, New task name appears in UI, but corresponding button is disabled

In the example above the Create Design task has been renamed to Create a New Design (Figure 1). If you select the task from the drop down menu and click Execute, it will work. However, notice that the Create Design button remains disabled (Figure 2). This is because the code behind the button is still looking for the Create Design task, not the Create a New Design task. This issue will occur whenever a task has a corresponding button. Any time a subtask calls a task that has been renamed, it will fail. To alleviate these problems follow the steps below to set the proper configuration values.

Step 2: Set the Configuration Value

1. In the Process Framework Administration tool, select the Configuration tab.
2. Click Add to create a new row.
3. Enter the configuration value (e.g., WMSTaskCreateDesign) in the Name column. The tables at the bottom of this page lists all of the available configuration names and their default values. If you change the default name for any task, on the Node Types tab, you must add the corresponding configuration name and the name to which you changed it.
4. Add your localized name (e.g., Create a New Design) in the Value column. This value MUST match the value in the Task Name field on the Node Types tab (Figure 1).

Figure 3, Configuration Name

With the configuration value set properly to match the task name on the Node Types tab, the corresponding button is enabled and any subtasks that reference the task will behave correctly.

Figure 4, button is now enabled

When you're finished localizing, close the Process Framework Administration tool and save changes when prompted.



Workflow Manager Task Names/Config Values

Default Task Name	Configuration Value
Approve Design	WMSTaskApproveDesign
Begin Construction	WMSTaskBeginConstruction
Change Owner	WMSTaskChangeOwner
Close Design	WMSTaskCloseDesign
Complete Work Request	WMSTaskCompleteWorkRequest
Construct Work Request	WMSTaskConstructWorkRequest
Copy Design	WMSTaskCopyDesign
Create Design	WMSTaskCreateDesign
Create Work Request	WMSTaskCreateWorkRequest
Delete	WMSTaskDelete
Delete No Prompt	WMSTaskDeleteNoPrompt
Design Cost Report	WMSTaskDesignCostReport
Open Design	WMSTaskOpenDesign
Post Design	WMSTaskPostDesign
Reconcile Design	WMSTaskReconcileDesign
Reject Design	WMSTaskRejectDesign
Save Design	WMSTaskSaveDesign
Send Design	WMSTaskSendDesign
Send Design to Current Field Owner	WMSTaskSendDNToCurrentFieldOwner
Send to field	WMSTaskSendToField
Submit Design	WMSTaskSubmitDesign
Transition to Mobile	WMSTaskTransitionToMobile
Undo Approve	WMSTaskUndoApprove
Undo Approve without Checking Other Conditions	WMSTaskUndoApproveNoMatterWhat
Undo Begin Construction	WMSTaskUndoBeginConstruction
Undo Construct Work Request	WMSTaskUndoConstructWorkRequest
Undo Construct Work Request to Initialized	WMSTaskUndoConstructWRToInit
Undo In Design Work Request	WMSTaskUndoInDesignWorkRequest
Verify Design	WMSTaskVerifyDesign



Session Manager Task Names/Config Values







---
