Print to File

Select this checkbox to save the report as a PDF or XPS document. Once selected, the Print button becomes temporarily disabled and the printer list is replaced with the following options:

Multiple Files

Select this checkbox to save each page of the report as a separate file. You can use this option to only save specific elements of an entire scenario.

File type field

Select the output file format (PDF or XPS) from the drop-down list.

File save location

Type the location where you want the files saved, or press the browse button to access the Save dialog. If browsing for a file, clicking the Save button will populate the file save location field but will not actually save the file. Once data is entered in the file save location field, the Print button is enabled.

Printer List

If the Print to File checkbox is cleared, select an available printer on your system to complete the print job.

The triangle to the left of Select Objects will expand or collapse the list of poles in the current scenario. By default, each checkbox is selected for every pole in the scenario. Clear any checkboxes for poles you do not want in the report. Select cleared checkboxes to put those poles back in the report.

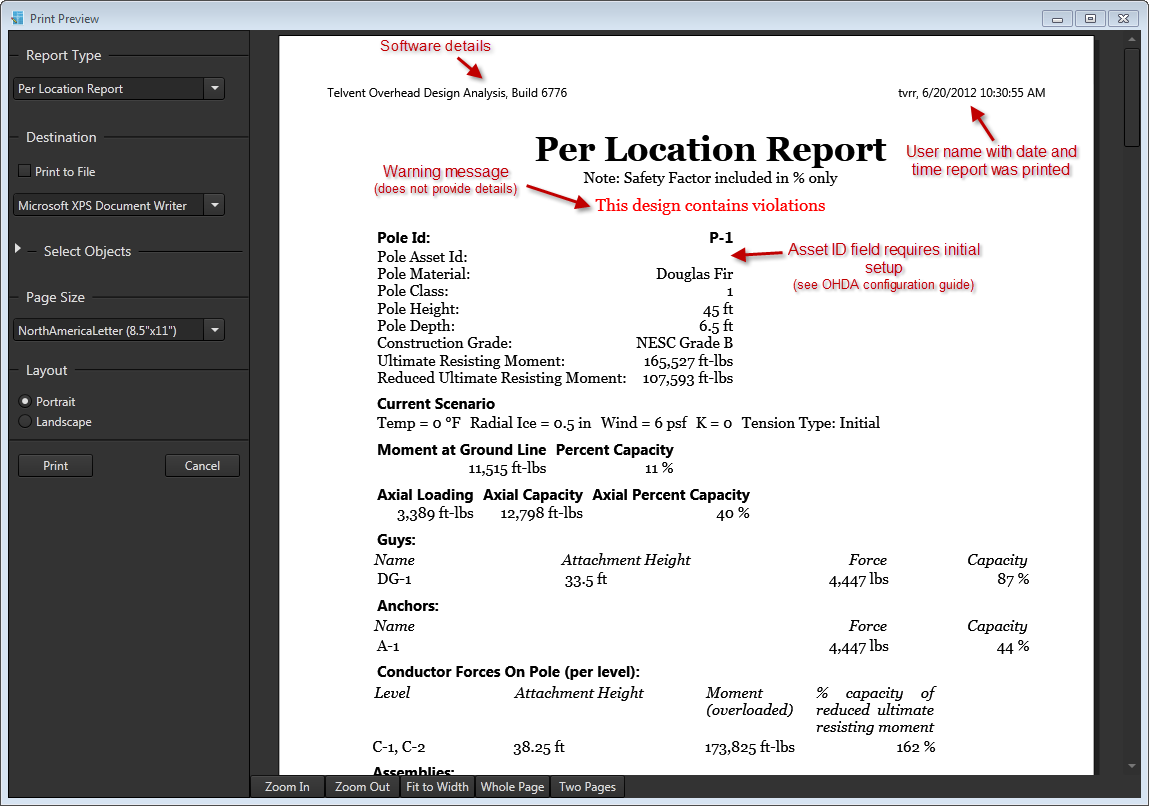

The report outputs details for each pole in the scenario that is checked in the Select Objects section. The specifications for each pole are included along with the current scenario, the pole's attachments, and relevant forces and capacities for each. The length of each pole's report is determined by its number of attachments, but is usually one and a half to two pages long. Each pole's report will begin on a new page.
