ArcFM Underground Facility Diagrams Toolbar

This toolbar provides the tools to view existing underground facility diagrams. Not all tools displayed on the toolbar are available in ArcFM Viewer. The tools discussed below are available in ArcFM Viewer to allow you to view underground facilities. All other tools on this toolbar will remain disabled.

	Launch Diagram Manager	Use this tool to view an existing diagram and open the Diagram Manager.
	Close Diagram Manager	Click this button to dismiss the Diagram Manager window.
	Navigate to Next Facility	Click this button, then click a duct bank to navigate to the next underground facility. Use this tool to navigate through the underground facilities network.
	Navigate to Previous Facility	Click this button to navigate to the previous underground facility. This button will remain disabled until the Navigate to Next Facility button has been used.
	Select Diagram	Click this button to select the current underground facility diagram. You may view information about the individual selected features on the Attribute Viewer.
	Select Duct Bank	Click this button, then click a duct bank to select it. You may view information about the individual selected features on the Attribute Viewer.

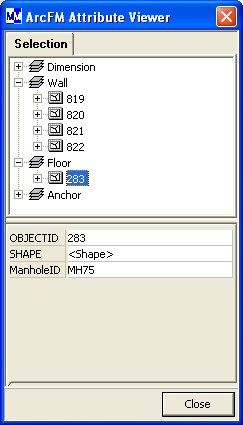

Attribute Viewer with diagram selected
