Using ArcFM Solution Desktop
Export to MultiSpeak
| ArcFM Desktop Overview > Network Adapter > MultiSpeak Toolbar > Export to MultiSpeak |

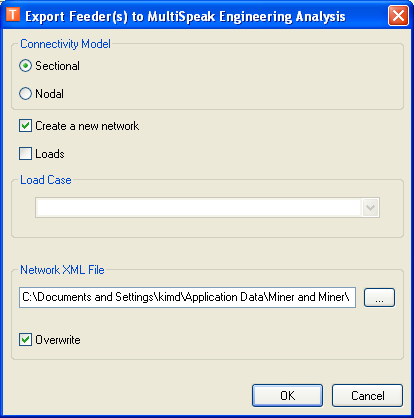

Click the Export button on the Network Adapter/MultiSpeak toolbar to export a selected set of feeders to a MultiSpeak-compliant analysis engine.
Connectivity Model: Select Sectional or Nodal. Sectional exports feeders using Section ID and parent Section ID. Milsoft uses a sectional model. Nodal exports feeders using a From Node ID and To Node ID.
Create a new network: When selected, this field indicates there are no existing feeders to be updated or appended. When unchecked, this field indicates that the exported feeders should be added to or replace an existing set of features. This field is checked by default.
Loads: When checked, load data will be added to the MultiSpeak XML using the Load Case selected in the Load Case field. The values in the load case field are from the Load Names table.
Network XML File: The field indicates the location of the output MultiSpeak XML. The Overwrite checkbox indicates whether to replace the existing file (checked) or not (unchecked).
