Lasso Tools

Lasso provides a way to easily relate a group of conductors (or cables) with a conduit feature. Lasso tools require the Lasso feature layer be added to the map document. The number of clicks the user makes to place the Lasso feature determines whether annotation is displayed to provide information about the related conductors. The annotation fields are determined by the Cross Section Annotation configuration (see Annotation Options in the Configuring ArcFM Solution online help in ArcCatalog. By default, the annotation displays the feature class alias and OID.

The Conduit Manager toolbar provides the Select By Lasso and Refresh Lassos tools. Select By Lasso uses an existing Lasso feature to add conduit and related features to the selected set. Refresh Lassos allows you to add conductors to an existing conduit and update annotation using an existing Lasso.

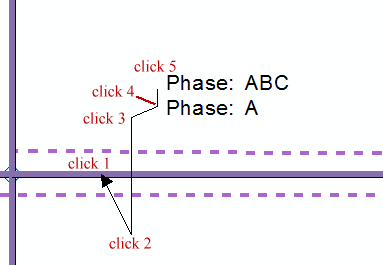

Figure 1, Five-point lasso

In Figure 1, the symbology of the lasso feature layer was modified to display an arrow at the start. This allows the user to place a lasso the points to the conduit and displays annotation about the conductors.

Types of Lassos

Lassos are defined by the number of mouse clicks required to place them. For three- and five-point lassos, you may modify the lasso symbology to include an arrow at the start (see Figure 1). This creates a lasso symbol that points to the conduit. To modify the lasso symbology, right-click it on the Display tab and select Properties.

2-point lasso: The first click and second click define the "gate" through which the conduit system and underground linear features you want to relate must pass. The 2-point lasso does not display annotation.
3-point lasso: The first click is directly on the conduit. The second and third clicks define the gate. The 3-point lasso does not display annotation.
4-point lasso: The first and second clicks define the gate. The third and fourth clicks determine where the annotation will appear. The fourth click determines the angle of display for the annotation.
5-point lasso: The first click is directly on the conduit. The second and third clicks define the gate. The fourth and fifth clicks indicate where the annotation will appear. The fifth and final click determines the angle of display for the annotation.
