Gas Trace Options

Use the Gas Tracing Options to determine how results are displayed and which features the trace recognizes as barriers.

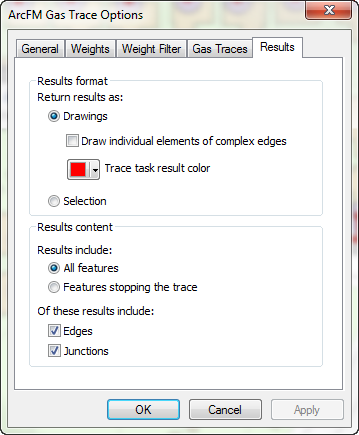

Results Format: Select the format ArcFM should use to display the results. This option may also be set using the Results as Selection toggle button on the ArcFM Gas Trace toolbar. You may change this option after the trace has been executed. If you switch from Drawings to Selection, ArcFM will convert the current trace results to a selected set when you click OK. If you switch from Selection to Drawings, the current trace results will NOT be converted to graphics.

Results Content: Note that the ArcFM Gas Valve Isolation Trace does not respect these settings.

Use these options to determine which features should be returned by the trace:

The All Features option returns every feature discovered by the trace.
The Features stopping the trace option returns only the features that caused the trace to stop.

Select a barrier for the type of trace you will perform:

Pressure System Trace Barriers: Select All regulators or Regulators with different inlet and outlet pressures. The All regulators option will stop the trace at a regulator regardless of its pressure.
Valve Isolation Trace Barriers: Select All valves or Critical Valves. Critical valves are indicated by the Operating Classification field (Critical/Inspection Required and Critical/Inspection Not Required). If you select Critical Valves, the Include Valve tool will become enabled on the Gas Isolation Traces toolbar and allow you to include non-critical valves in the trace.
Gas System Trace Barriers: Select Town Border Stations or Regulators to indicate where to stop the trace.

The Temporary Marks section allows you to determine how the Clear All button works on the Gas Traces toolbar. This button may be used to clear temporary marks placed using tools on the Gas Valve Isolation toolbar. Select the "Clear temporary marks" checkbox to include temporary marks with Clear All. Designate which temporary marks using the checkboxes for the individual types.

Select the "Run trace after placing temporary mark" checkbox to execute the trace immediately after the temporary mark is placed. If this box is left unchecked, you will have to select the trace tool and click the starting point on the map to initiate the trace.

The remaining tabs are Esri functionality. Refer to ArcGIS for Desktop help for more information.
