Feeder Symbology
| ArcFM Desktop Overview > ArcFM > Feeder Manager > Feeder Symbology |
Feeder Manager populates the FeederID, FeederID2 and FeederInfo fields. The FeederID field identifies separate feeder systems and the devices associated with them. The FeederID2 field will be populated if the feature has more than one circuit source. The FeederInfo field contains bitgate information such as energized phases, loops, extra feeds (double feeds) and islands. See the Configuring ArcFM Solution online help in ArcCatalog for more information on the FeederInfo field.

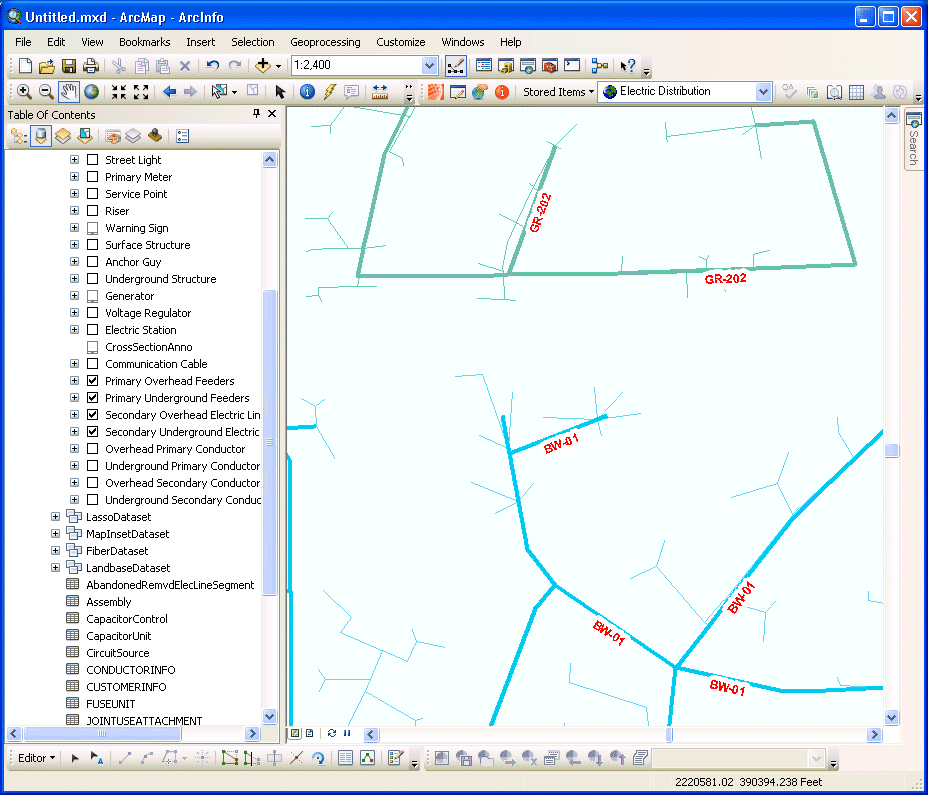

Add the Electric Line Segment layers to the map.

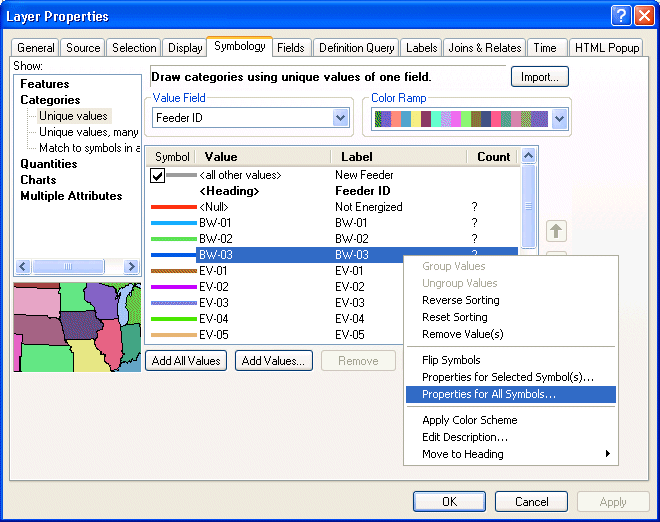

Right-click a layer and select Properties. Go to the Symbology tab.
Select FeederID in the Value field.
Click Add Values or Add All Values
Right-click each value and select Properties for Selected Symbols. Edit the symbol for that particular feature.
