You may modify the leader line style (e.g., color, width). Editing the style only affects future placed leader lines, not those that already exist on the map. If you want to modify a current leader line, enable the Select Elements  tool on the Draw toolbar, right-click the leader line on the map, and select Properties. To set the leader line style before placement:

1. From the Customize menu, select Conduit Manager Options.



2. Click the Leader Line Settings button.

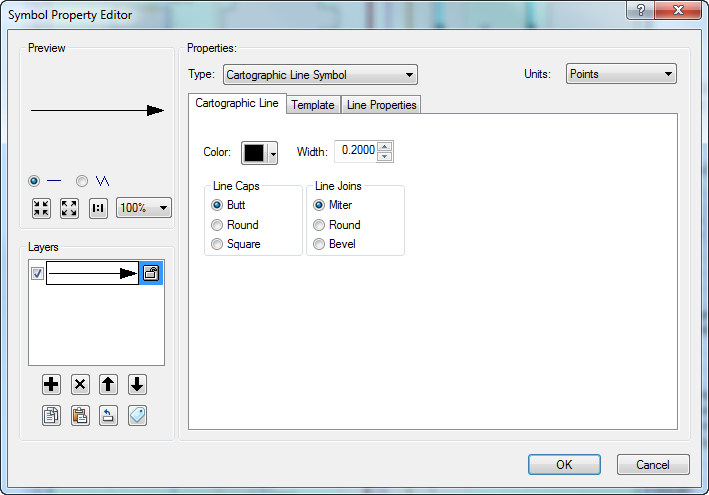

3. Use the Symbol Property Editor to edit lines to a desired style.



4. Click OK.







---
