Edit Palette and Palette Items

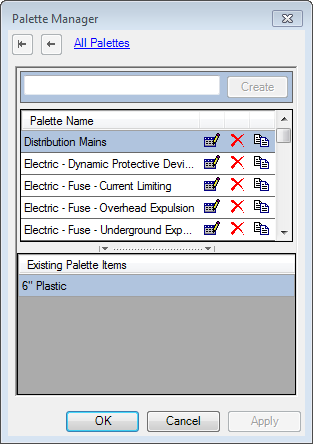

You can edit an existing palette and the items within it. To do this, open the Palette Manager . Select the palette you wish to edit in the list. The selected palette is highlighted in blue (Distribution Mains in the example below).

Next to each palette you will find three buttons: Edit, Delete and Copy.

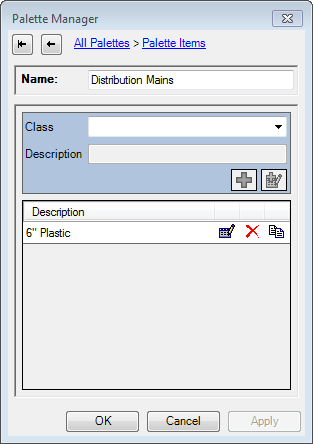

Edit: Allows you to modify the name of the palette (as it appears in the Design Palette tab) as well as add, copy or remove items from the palette. Palette items have the same three buttons available: Edit, Delete and Copy.

Delete: Removes the palette from the palette manager or the selected item from the palette. You will be prompted to confirm that you want to delete the selected palette or palette item. Deleted palettes and palette items cannot be retrieved.

Copy: Creates a copy of the selected palette or palette item and appends "Copy of" to the beginning of the name. You can copy an existing palette or palette item and edit the copy as needed.

Click Apply at any point to save changes to the palette. When you've finished editing the palette, click OK to save changes. Click Cancel to dismiss the Palette Manager without saving any changes made since the last time the Apply button was clicked.
