Draw Exclusion Zones

This step allows you to exclude pedestals and transformers from a designated area using the Draw Exclusion Zones node. For example, if your design contains an area in which a transformer should not be placed, you can define the boundaries of this exclusion area and select transformers as the excluded feature.

Configure and Create Exclusion Zones

Use the Draw Exclusion Zones button and the Pedestal and/or Transformer checkboxes to configure and create one or more exclusion zones on grouped parcels.

Select the Draw Exclusion Zones node in the Design Optimization window.
Select one or both checkboxes to indicate whether you wish to exclude pedestals, transformers, or both pedestals and transformers.
Click the Draw Exclusion Zones button .

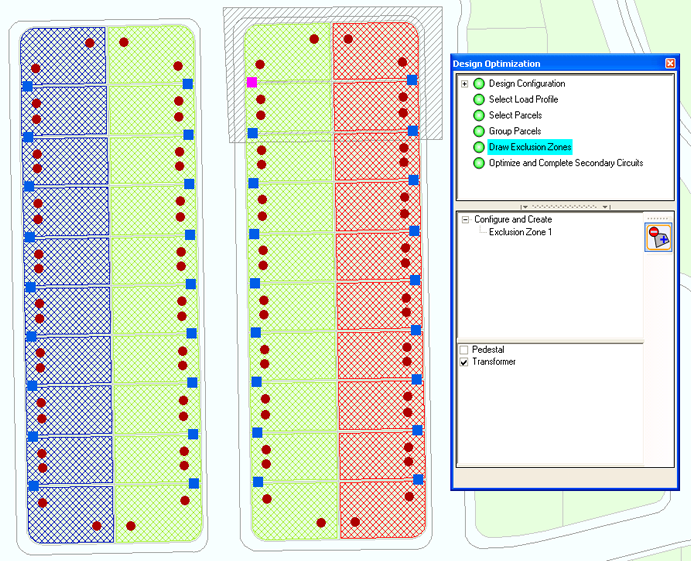

Draw a polygon on the map to define the boundary of the exclusion zone. Depending on your checkbox selection, the Draw Exclusion Zones tool excludes pedestals and/or transformers. In the following example, the polygon with the gray cross-hatching denotes the exclusion zone. The bright pink graphic indicates an excluded transformer.
You may draw multiple exclusion zones. Select a new combination of features to exclude each time if you wish.

Edit Exclusion Zones

You may edit an existing exclusion zone.

Click on the Exclusion Zone you wish to edit. Right-click to use the Highlight and Zoom To tools to locate the zone on the map, if necessary.
Select or deselect the checkbox(es) to obtain your desired configuration.
The map will automatically update to reflect your changes.

Remove Exclusion Zones

You may delete an existing exclusion zone. Simply right-click the zone and select Remove Exclusion Zone.
