To disassociate a conductor from a conduit system feature, you may select either the conductor feature, or the related conductor under the conduit. Disassociating a conductor from a conduit removes the relationship entirely between the two features.

1. Right-click the conductor and select Disassociate from Conduit.

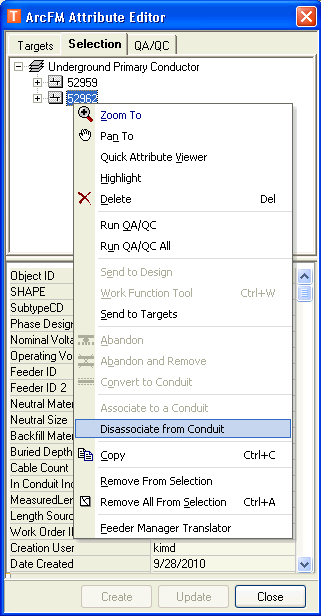

Figure 1, Select the conductor feature and disassociate

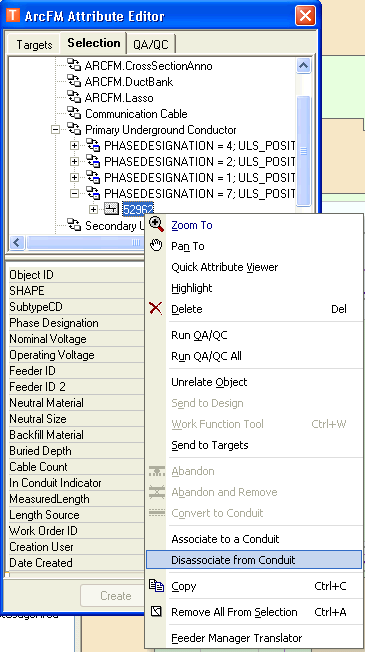

Figure 2, Select the conductor in the conduit relationship and disassociate





---
