Designer CU to WL Assignment
| ArcFM Desktop Overview > Designer > Designer Toolbar > Designer CU to WL Assignment |
This tool allows you to assign CUs to Work Locations in an open design on the Design tab. Users may indicate how CUs are assigned using the WL Assignment tab in Tools > Designer Options.
How linear CUs are assigned to Work Locations (WLs) depends on the setting selected in the ArcFM Properties Manager on the geodatabase in ArcCatalog. If you wish to change this setting, contact your Administrator. There are three settings:

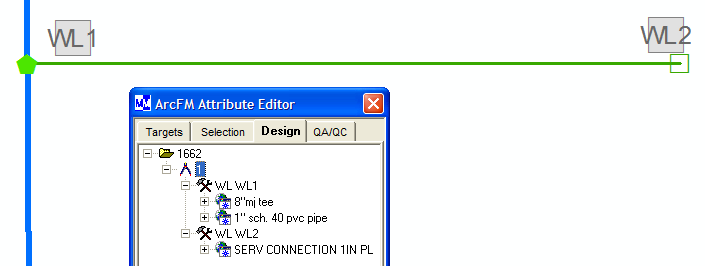

If multiple WLs have been placed, the linear CU is assigned to the WL closest to its starting point. In the example below, the WL1 is closest to the Service Pipe feature's start, therefore the pipe is assigned to WL1.

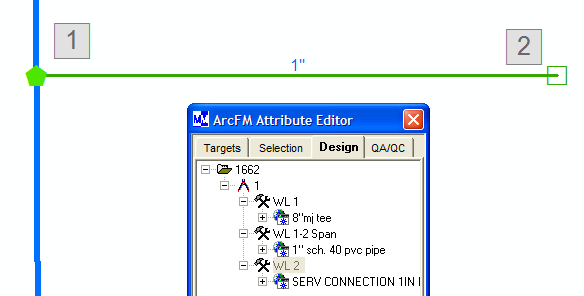

The linear CU is assigned to a span between WLs. In the example below, the Service Pipe is assigned to WL 1-2 Span on the Attribute Editor.

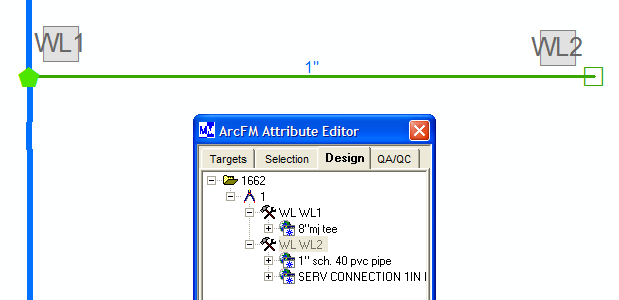

If multiple WLs have been placed, the linear CU is assigned to the WL closest to its ending point. In the example below, the WL2 is closest to the Service Pipe feature's end, therefore the pipe is assigned to WL2.
