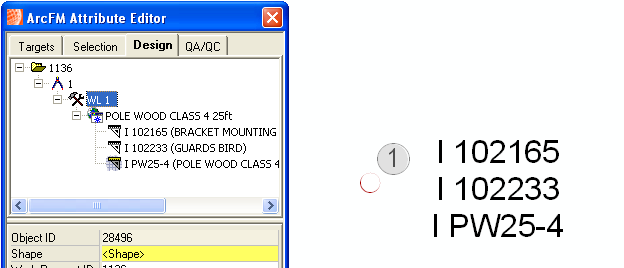

You can add CU text to the map near the Work Location associated with placed CUs. This labeling function is integrated with ArcMap drawing tools so that you can move labels or change the font, color, and style of the text.

1. You must have a design open and that design must contain a work location and CUs.

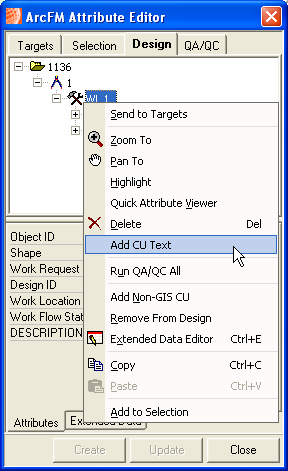

2. On Design tab, right-click Work Location.
3. Select Add CU Text.

4. Click the map near the Work Location to place text.
5. To change the font or color, select the text using the Select Elements arrow.

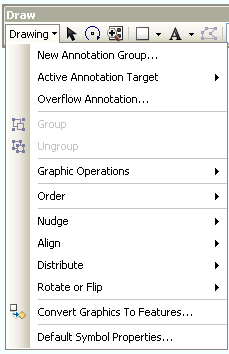

6. Click the Drawing down arrow on the Draw toolbar and select Default Symbol Properties.

7. Select the Text button.

OR select text using Select Elements arrow and use Draw toolbar icons to change text style.







---
