Follow these steps to add cross section annotation to the map for a selected conduit.

1. If it doesn't already exist, add the cross section annotation layer to your map. In the Minerville sample data this layer is called Conduit System Cross Section Annotation (ConduitSystemCrossSectionAnno).
2. On the map, select the conduit system for which you wish to display annotation.
3. On the Attribute Editor Selection tab, right-click the conduit system feature and select Place Cross Section.
4. The cursor changes into a black X with cross-hairs. Click the area on the map where you want the annotation displayed.

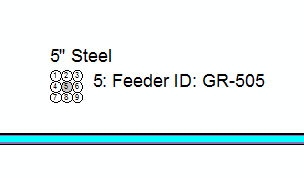

5. The annotation is placed at the click point on the map.

Each time you select Place Cross Section and click the map, an additional cross section annotation is added. This allows you to have multiple annotations along the length of conduit.







---
