Set Schedule

Resource Center Home

The Schedule tab allows you to set the days and times that the service is available.

The interval times are valid only for the selected days. So if you wish to schedule an over-night interval, you will need to create two Intervals: one that ends at 11:59pm and another that starts at midnight on the next day.

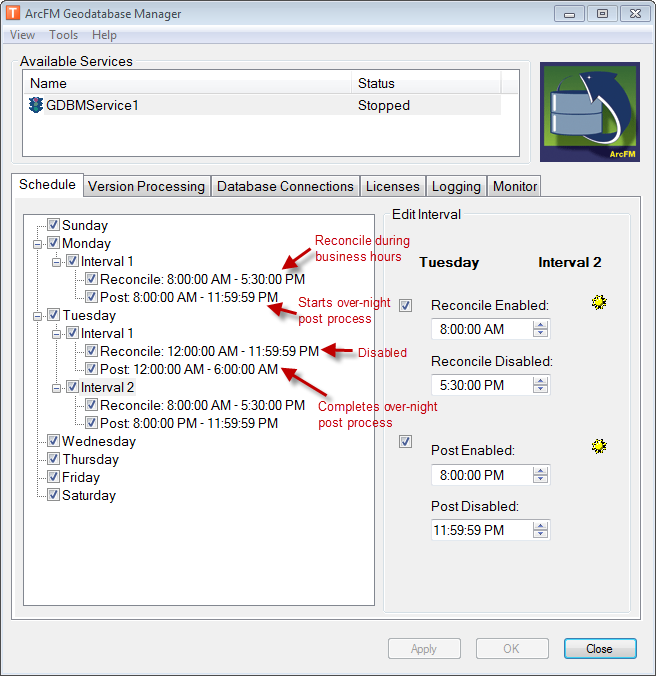

In this example, we'll create an interval that runs the post process over night and another that makes the reconcile service available during business hours.

  1. First, ensure you have the correct service selected in the Available Services window.
  2. Select the Schedule tab.

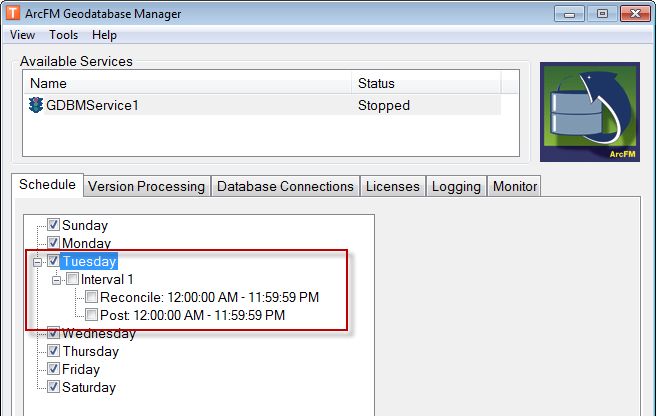

  3. Right-click a day and select Add Interval. This creates an Interval node under the selected day. You may expand the interval to display the default time settings.

  1. Select the Interval node and use the right side of the window to determine what it does (e.g., post, reconcile) and when.
  2. Select the checkbox(es) to enable reconcile or post on this interval. In this example, we'll check both.
  3. Set the times for the post and/or reconcile to run. In this example, the reconcile service will be available from 8am until 5:30pm. The post process starts at 8pm and ends (for this interval) at 11:59pm. If you want the post process to continue overnight, create an interval on the next day that starts at 12am and ends at 6am.

  1. Create intervals for all appropriate days/times.
  2. Click Apply to save changes and retain the Geodatabase Manager window. Click OK to save changes and dismiss the window. Click Close to dismiss the window. You will be prompted to save changes before closing.

You can modify the configuration of a service while it is running, but your changes will not be active until the service is restarted.

You may disable an interval or a process in an interval (reconcile or post) by unselecting the checkbox next to the node in the tree. Unselecting the checkbox next to a day of the week does not impact the intervals. You must select/unselect checkboxes next to the intervals or processes (post or reconcile).
