Two Point Trace Settings

If you're creating an object class (table), skip the steps on this page. These settings apply only to features with spatial representation on the map.

The Two Point Trace tool traces all available routes between two points in the fiber network using user-defined trace criteria (e.g., fiber count, owner, type).

Note that the class model name is assigned to point feature classes that can be designated as the start and end points of the trace. The Two Point trace cursor will snap to point features with this model name assigned.

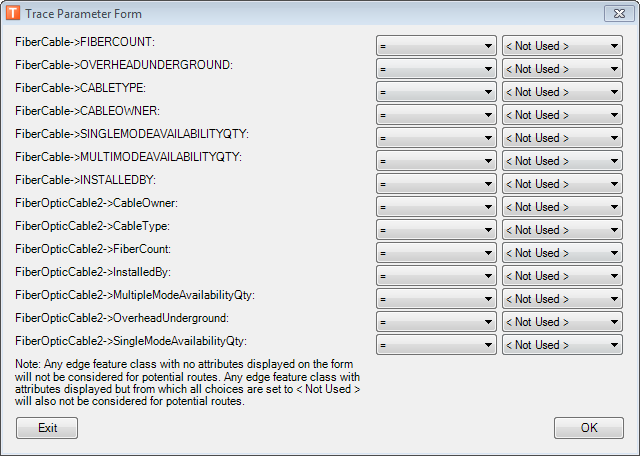

The field model name is assigned to fields on the linear feature classes that travel between the start and end points. The fields to which this field model name is assigned appear on the Trace Parameters form which is used to define the criteria of the trace. In the image below, the field model name has been assigned to the TubeCount, OverheadUnderground, and CableType fields on the ABFCable feature class.

Assign To:	Data Type	Field Model Name	Class Model Name
Any point feature you want to participate in a Two Point trace This feature may split cable lines.			FIBERTWOPOINTTRACEPOINT
	Object Autoupdaters: On Feature Create: ArcFM Fiber Optic Cable Splitter On Feature Update: ArcFM Fiber Optic Cable Splitter
Any field on a linear feature you wish to use in the Trace Parameter form This feature will be considered for potential paths by the two-point trace.	Any except Date	FIBERTWOPOINTTRACEFIELD
