To configure Manual Angle Setter:

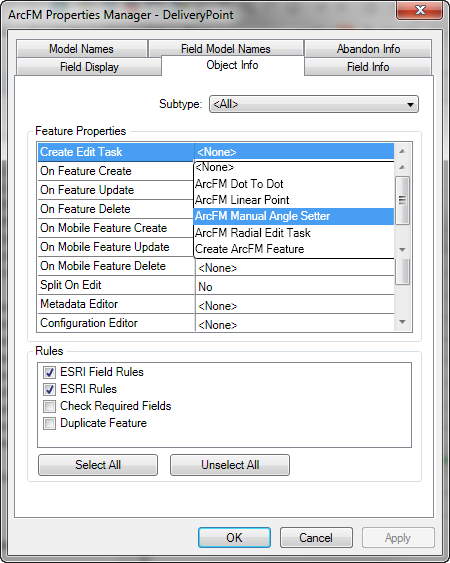

1. In ArcCatalog, right-click the feature class and select the ArcFM Properties Manager.

2. Select the Object Info tab.

3. Select ArcFM Manual Angle Setter in the Create Edit Task field.

4. Click OK.



This enables the Manual Angle Setter for the feature class in ArcMap. However, you still need to set the symbol rotation style.

1. In ArcMap, right-click the feature class on the Display tab of the table of contents.

2. Select Properties.

3. Click the Symbology tab.

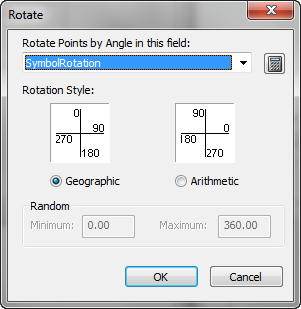

4. Click the Advanced button and choose Rotation.



5. In the dropdown select the SymbolRotation field.

6. Select a rotation style: Geographic or Arithmetic.

7. Click OK.

Unless you save the properties of this layer in a map document, layer file, stored display, or document, you will need to set the symbol rotation field each time you add that layer to a map.
